Reno Mattress is a mesh box structure, similar with Hexagonal Gabion Box, fabricated from high quality tensile, heavily galvanized steel, with a height of generally 0.3m, filled with stones, which is generally applied in slope protection or laid on the riverbed to prevent the water from scouring the riverbed.
Also Known As:
Gabion mattress
Gabion rolls
Gabion box
Gabion rock basket
River gabion
Military Gabion Barrier
DESCRIÇÃO

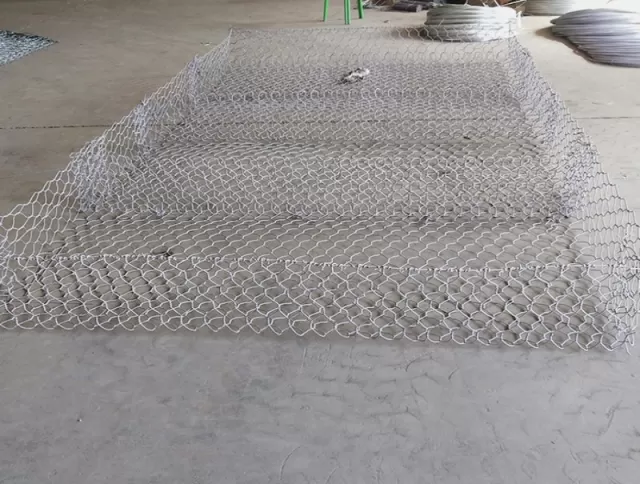

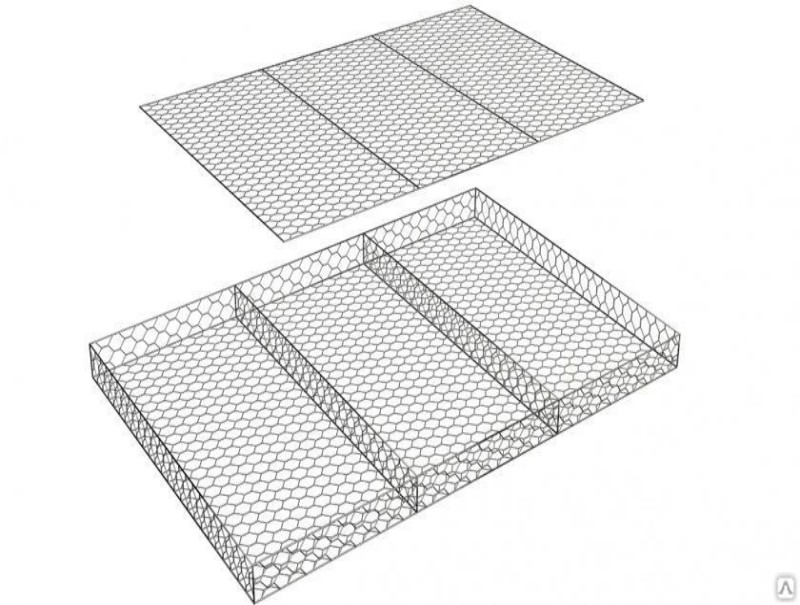

Reno Mattresses are cages, engineered from double twisted hexagonal woven steel wire mesh. Delivered flat-packed, they are assembled and then filled with stones at the project site to form flexible and permeable, monolithic structures such as river bank protection and channel linings for erosion control. Reno Mattresses are divided into uniformly partitioned cells by internal diaphragms.
SPIDER is your one-stop shopping solution for high-quality WIRE MESH & NAILS products, offering a complete range that includes mesh panels, rolls, posts, clamps, and all necessary accessories. With 15 years of experience and exports to over 30 countries, we specialize in wire mesh and fencing solutions, ensuring all products are customized using fresh materials and inspected before delivery. Our main offerings include 358 anti-climb fencing, chainlink fencing, field fence, star pickets, temporary fences, crowd control barriers, razor wire, and barbed wire, as well as various wire mesh products like stainless steel wire mesh, hexagonal wire netting, gabions, expanded metal, and steel grating.
Galfan Gabion Mattress Mesh Regular Size
| Aperture(mm) | Mesh Wire (mm) | Selvage Wire (mm) | Lacing Wire (mm) | Max Width (m) |
| 60×80 | 2.0-3.0mm | 3.0-4.0mm | 2.2mm | 4m |
| 80×100 | 2.0-3.0mm | 3.0-4.0mm | 2.2mm | 4m |
| 80×120 | 2.0-3.0mm | 3.0-4.0mm | 2.2mm | 4m |
| 100×120 | 2.0-3.0mm | 3.0-4.0mm | 2.2mm | 4m |
| 100×150 | 2.0-3.0mm | 3.0-4.0mm | 2.2mm | 4m |
| 120×150 | 2.0-3.0mm | 3.0-4.0mm | 2.2mm | 4m |
| Surface Treatment: Heavy Galvanized, Galfan, PVC Coated | ||||
| Galvanized Coating Weight | ≥ 260 g/m² (complies with ISO 1461 standard) |
| PVC Coating Thickness | 0.3 mm – 0.5 mm |
| Material Standards | Low carbon steel wire per GB/T 3091, ISO 10326, EN 10223-3 |
| Structure Features | Double-twisted hexagonal wire mesh with internal diaphragms to prevent stone displacement |
| Packaging | Flat-packed mesh panels, filled onsite with stones |
| Corrosion Resistance | Meets ASTM A123, ISO 1461 standards for excellent durability |
| Application Standards | Complies with EN 10223-3, ASTM A975 for engineering protection structures |
Economy: just needs stones into the gabion,sand seal it.
Construction :simple, no special skills.
Strong resistance to natural damage,corrosion and adverse climate impacts
It can withstand a wide range of deformation, but not collapse.
Retaining Wall.
Channel Lining.
Bridge Protection.
Dam Protection.

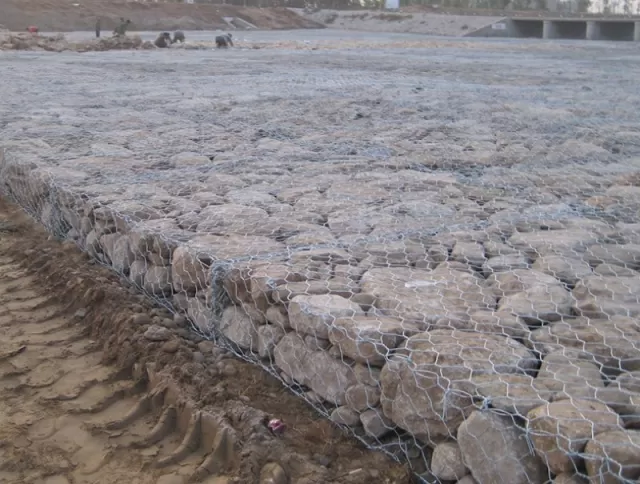

Riverbank Protection.

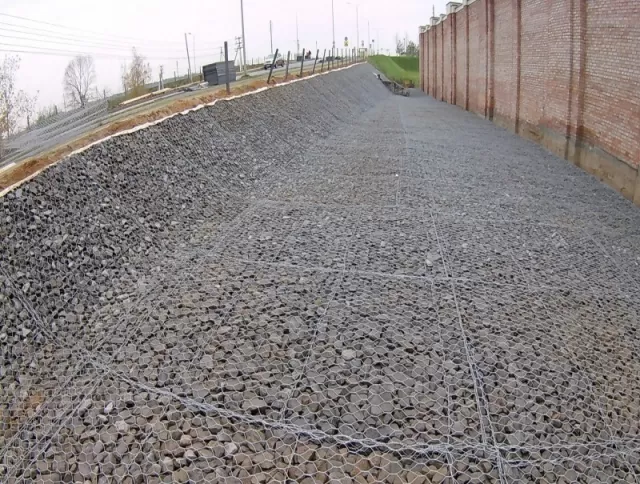

Slope Protection.
Coastal Protection.
Flood Controlling.
River Regulation.
Fireplace.
Landscape Construction.
Gabion Planter.
